#include <Value.h>

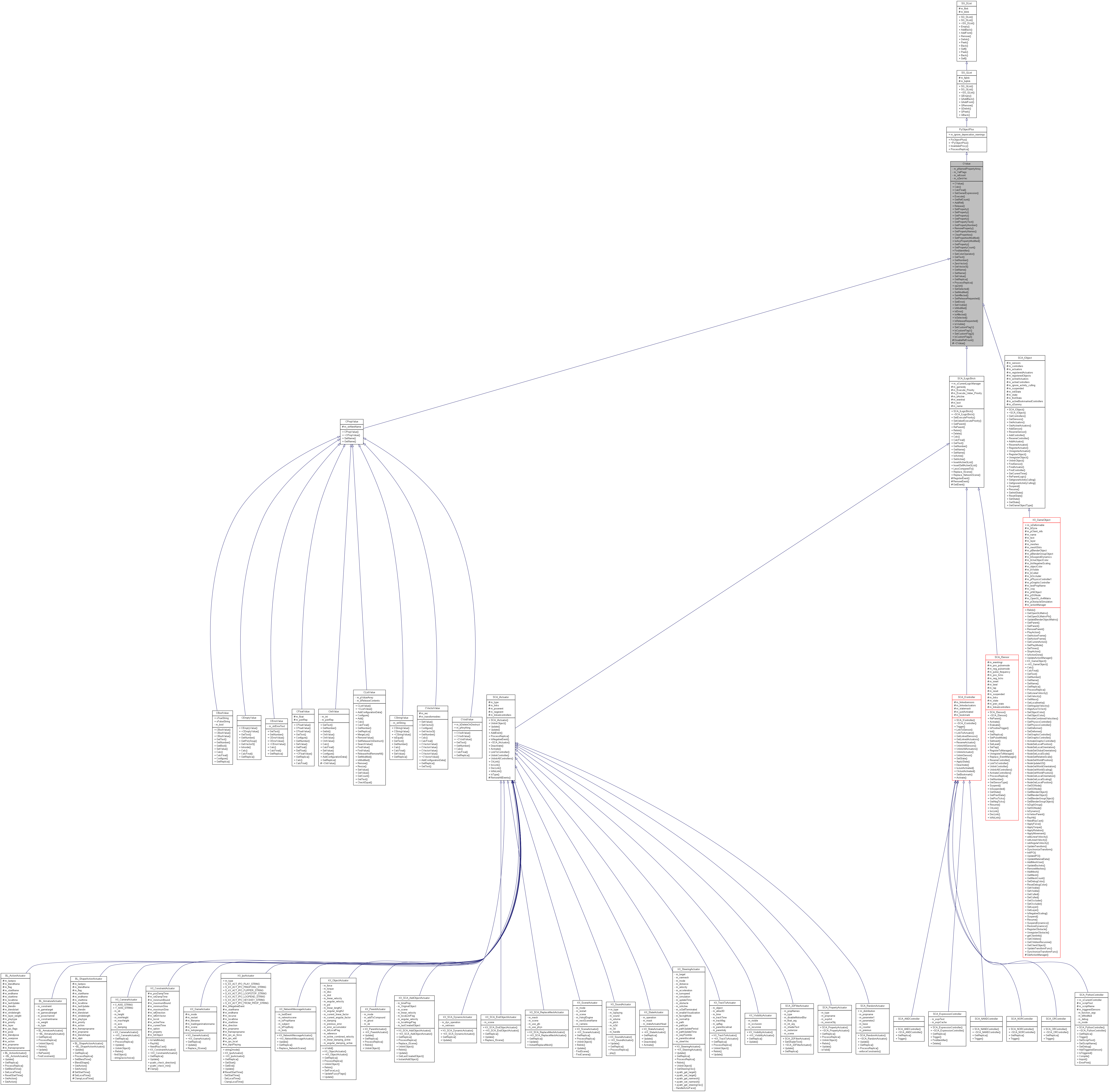

Inheritance diagram for CValue:

[legend]

Public Types
enum	AllocationTYPE { STACKVALUE = 0, HEAPVALUE = 1 }
enum	DrawTYPE { STARTFRAME = 0, ENDFRAME = 1, INTERFRAME = 2 }
Public Member Functions
	CValue ()
virtual CValue *	Calc (VALUE_OPERATOR op, CValue *val)=0
virtual CValue *	CalcFinal (VALUE_DATA_TYPE dtype, VALUE_OPERATOR op, CValue *val)=0
virtual void	SetOwnerExpression (class CExpression *expr)
void	Execute (const CAction &a)
int	GetRefCount ()
	Reference Counting.
CValue *	AddRef ()
int	Release ()
virtual void	SetProperty (const STR_String &name, CValue *ioProperty)
	Property Management.
virtual void	SetProperty (const char name, CValue ioProperty)
virtual CValue *	GetProperty (const char *inName)
virtual CValue *	GetProperty (const STR_String &inName)
const STR_String &	GetPropertyText (const STR_String &inName)
float	GetPropertyNumber (const STR_String &inName, float defnumber)
virtual bool	RemoveProperty (const char *inName)
virtual vector< STR_String >	GetPropertyNames ()
virtual void	ClearProperties ()
virtual void	SetPropertiesModified (bool inModified)
virtual bool	IsAnyPropertyModified ()
virtual CValue *	GetProperty (int inIndex)
virtual int	GetPropertyCount ()
virtual CValue *	FindIdentifier (const STR_String &identifiername)
virtual void	SetColorOperator (VALUE_OPERATOR op)
virtual const STR_String &	GetText ()=0
virtual double	GetNumber ()=0
double *	ZeroVector ()
virtual double *	GetVector3 (bool bGetTransformedVec=false)
virtual STR_String &	GetName ()=0
virtual void	SetName (const char *name)=0
virtual void	SetValue (CValue *newval)
virtual CValue *	GetReplica ()=0
virtual void	ProcessReplica ()
STR_String	op2str (VALUE_OPERATOR op)
void	SetSelected (bool bSelected)
virtual void	SetModified (bool bModified)
virtual void	SetAffected (bool bAffected=true)
void	SetReleaseRequested (bool bReleaseRequested)
void	SetError (bool err)
void	SetVisible (bool vis)
virtual bool	IsModified ()
bool	IsError ()
virtual bool	IsAffected ()
virtual bool	IsSelected ()
bool	IsReleaseRequested ()
virtual bool	IsVisible ()
virtual void	SetCustomFlag1 (bool bCustomFlag)
virtual bool	IsCustomFlag1 ()
virtual void	SetCustomFlag2 (bool bCustomFlag)
virtual bool	IsCustomFlag2 ()
Protected Member Functions
virtual void	DisableRefCount ()
virtual	~CValue ()

Detailed Description

Baseclass CValue

Together with CExpression, CValue and it's derived classes can be used to parse expressions into a parsetree with error detecting/correcting capabilities also expandible by a CFactory pluginsystem

Base class for all editor functionality, flexible object type that allows calculations and uses reference counting for memory management.

Features:

Reference Counting (AddRef() / Release())
Calculations (Calc() / CalcFinal())
Configuration (Configure())
Serialization (EdSerialize() / EdIdSerialize() / EdPtrSerialize() and macro PLUGIN_DECLARE_SERIAL
Property system (SetProperty() / GetProperty() / FindIdentifier())
Replication (GetReplica())
Flags (IsSelected() / IsModified() / SetSelected()...)

Some small editor-specific things added
A helperclass CompressorArchive handles the serialization

Definition at line 200 of file Value.h.

Member Enumeration Documentation

enum CValue::AllocationTYPE

Enumerator:

STACKVALUE
HEAPVALUE

Definition at line 205 of file Value.h.

enum CValue::DrawTYPE

Enumerator:

STARTFRAME
ENDFRAME
INTERFRAME

Definition at line 210 of file Value.h.

Constructor & Destructor Documentation

CValue::CValue ( )

Definition at line 92 of file Value.cpp.

CValue::~CValue ( ) [protected, virtual]

Definition at line 113 of file Value.cpp.

References assertd, and ClearProperties().

Member Function Documentation

CValue* CValue::AddRef ( ) [inline]

Definition at line 259 of file Value.h.

Referenced by SCA_IObject::AddActuator(), KX_Scene::AddAnimatedObject(), SCA_IObject::AddController(), SCA_IScene::AddDebugProperty(), KX_Scene::AddNodeReplicaObject(), KX_Scene::AddReplicaObject(), SCA_IObject::AddSensor(), SCA_TimeEventManager::AddTimeProperty(), bl_ConvertBlenderObject_Single(), BL_ConvertBlenderObjects(), CEmptyValue::CalcFinal(), COperator2Expr::Calculate(), CConstExpr::Calculate(), CIdentifierExpr::CIdentifierExpr(), KX_Scene::DelayedRemoveObject(), KX_Scene::DupliGroupRecurse(), FindIdentifier(), gameobject_from_blenderobject(), SCA_ILogicBrick::GetEvent(), KX_GameObject::GetParent(), CListValue::MergeList(), KX_TouchSensor::NewHandleCollision(), KX_NearSensor::NewHandleCollision(), KX_KetsjiEngine::PostProcessScene(), SCA_PropertySensor::PrecalculateRangeExpression(), SCA_ILogicBrick::RegisterEvent(), KX_GameObject::RemoveParent(), SetProperty(), SCA_ExpressionController::Trigger(), SCA_PropertyActuator::Update(), and walk_children().

virtual CValue* CValue::Calc	(	VALUE_OPERATOR	op,
		CValue *	val
	)		`[pure virtual]`

Implemented in CBoolValue, CEmptyValue, CErrorValue, CFloatValue, CIntValue, CListValue, CStringValue, CVectorValue, CVoidValue, SCA_ILogicBrick, and KX_GameObject.

Referenced by SCA_ILogicBrick::Calc(), COperator1Expr::Calculate(), COperator2Expr::Calculate(), and CListValue::CheckEqual().

virtual CValue* CValue::CalcFinal	(	VALUE_DATA_TYPE	dtype,
		VALUE_OPERATOR	op,
		CValue *	val
	)		`[pure virtual]`

Implemented in CBoolValue, CEmptyValue, CErrorValue, CFloatValue, CIntValue, CListValue, CStringValue, CVectorValue, CVoidValue, SCA_ILogicBrick, and KX_GameObject.

Referenced by CStringValue::Calc(), CIntValue::Calc(), CEmptyValue::Calc(), CBoolValue::Calc(), CFloatValue::Calc(), CErrorValue::Calc(), CVectorValue::Calc(), and SCA_ILogicBrick::CalcFinal().

void CValue::ClearProperties ( ) [virtual]

Definition at line 342 of file Value.cpp.

References NULL, and Release().

Referenced by ~CValue().

void CValue::DisableRefCount ( ) [protected, virtual]

Definition at line 456 of file Value.cpp.

References assertd, and ValueFlags::RefCountDisabled.

Referenced by CBoolValue::CBoolValue(), CFloatValue::CFloatValue(), CIntValue::CIntValue(), CStringValue::CStringValue(), CVectorValue::CVectorValue(), and CVoidValue::CVoidValue().

void CValue::Execute ( const CAction & a ) [inline]

Definition at line 247 of file Value.h.

References CAction::Execute().

CValue * CValue::FindIdentifier ( const STR_String & identifiername ) [virtual]

Reimplemented in SCA_ExpressionController, and SCA_PropertySensor.

Definition at line 496 of file Value.cpp.

References AddRef(), STR_String::Find(), FindIdentifier(), GetProperty(), STR_String::Left(), STR_String::Length(), NULL, and STR_String::Right().

Referenced by CIdentifierExpr::Calculate(), SCA_PropertySensor::CheckPropertyCondition(), SCA_ExpressionController::FindIdentifier(), FindIdentifier(), SCA_PropertySensor::FindIdentifier(), and SCA_PropertySensor::SCA_PropertySensor().

virtual STR_String& CValue::GetName ( ) [pure virtual]

Implemented in CPropValue, SCA_ILogicBrick, and KX_GameObject.

Referenced by KX_NetworkMessageSensor::Evaluate(), CListValue::FindValue(), SCA_IController::UnlinkActuator(), SCA_ISensor::UnlinkController(), SCA_IActuator::UnlinkController(), and SCA_IController::UnlinkSensor().

virtual double CValue::GetNumber ( ) [pure virtual]

CValue * CValue::GetProperty ( int inIndex ) [virtual]

Definition at line 398 of file Value.cpp.

References NULL.

CValue * CValue::GetProperty ( const char * inName ) [virtual]

CValue * CValue::GetProperty ( const STR_String & inName ) [virtual]

Definition at line 257 of file Value.cpp.

References NULL.

int CValue::GetPropertyCount ( ) [virtual]

Definition at line 425 of file Value.cpp.

Referenced by KX_Scene::AddNodeReplicaObject(), and KX_Scene::NewRemoveObject().

vector< STR_String > CValue::GetPropertyNames ( ) [virtual]

Definition at line 325 of file Value.cpp.

Referenced by SCA_2DFilterActuator::SCA_2DFilterActuator().

float CValue::GetPropertyNumber	(	const STR_String &	inName,
		float	defnumber
	)

Definition at line 291 of file Value.cpp.

References GetProperty().

const STR_String & CValue::GetPropertyText ( const STR_String & inName )

Definition at line 280 of file Value.cpp.

References GetProperty().

Referenced by KX_NetworkMessageActuator::Update().

int CValue::GetRefCount ( ) [inline]

Reference Counting.

Definition at line 253 of file Value.h.

virtual CValue* CValue::GetReplica ( ) [pure virtual]

Implemented in BL_ActionActuator, BL_ArmatureActuator, BL_ArmatureObject, BL_DeformableGameObject, BL_ShapeActionActuator, CBoolValue, CEmptyValue, CErrorValue, CFloatValue, CIntValue, CListValue, CStringValue, CVectorValue, CVoidValue, SCA_2DFilterActuator, SCA_ActuatorSensor, SCA_AlwaysSensor, SCA_ANDController, SCA_DelaySensor, SCA_ExpressionController, SCA_ISensor, SCA_JoystickSensor, SCA_KeyboardSensor, SCA_MouseSensor, SCA_NANDController, SCA_NORController, SCA_ORController, SCA_PropertyActuator, SCA_PropertySensor, SCA_PythonController, SCA_RandomActuator, SCA_RandomSensor, SCA_XNORController, SCA_XORController, KX_ArmatureSensor, KX_Camera, KX_CameraActuator, KX_ConstraintActuator, KX_FontObject, KX_GameActuator, KX_GameObject, KX_IpoActuator, KX_LightObject, KX_MouseFocusSensor, KX_NavMeshObject, KX_NearSensor, KX_ObjectActuator, KX_ParentActuator, KX_RadarSensor, KX_RaySensor, KX_SCA_AddObjectActuator, KX_SCA_DynamicActuator, KX_SCA_EndObjectActuator, KX_SCA_ReplaceMeshActuator, KX_SceneActuator, KX_SoundActuator, KX_StateActuator, KX_SteeringActuator, KX_TouchSensor, KX_TrackToActuator, KX_VisibilityActuator, KX_NetworkMessageActuator, and KX_NetworkMessageSensor.

Referenced by SCA_IObject::ReParentLogic(), and SCA_PropertyActuator::Update().

virtual const STR_String& CValue::GetText ( ) [pure virtual]

double * CValue::GetVector3 ( bool bGetTransformedVec = false ) [virtual]

Reimplemented in CEmptyValue, and CVectorValue.

Definition at line 434 of file Value.cpp.

References assertd.

Referenced by CVectorValue::CalcFinal().

virtual bool CValue::IsAffected ( ) [inline, virtual]

Definition at line 347 of file Value.h.

References ValueFlags::Affected, and ValueFlags::Modified.

Referenced by CConstExpr::NeedsRecalculated().

bool CValue::IsAnyPropertyModified ( ) [virtual]

Definition at line 381 of file Value.cpp.

virtual bool CValue::IsCustomFlag1 ( ) [inline, virtual]

Definition at line 352 of file Value.h.

References ValueFlags::CustomFlag1.

virtual bool CValue::IsCustomFlag2 ( ) [inline, virtual]

Definition at line 355 of file Value.h.

References ValueFlags::CustomFlag2.

bool CValue::IsError ( ) [inline]

Definition at line 346 of file Value.h.

References ValueFlags::Error.

Referenced by SCA_PropertySensor::CheckPropertyCondition(), CParser::GetValue(), SCA_PropertySensor::SCA_PropertySensor(), and SCA_ExpressionController::Trigger().

virtual bool CValue::IsModified ( ) [inline, virtual]

Reimplemented in CListValue.

Definition at line 345 of file Value.h.

References ValueFlags::Modified.

Referenced by CListValue::IsModified().

bool CValue::IsReleaseRequested ( ) [inline]

Definition at line 349 of file Value.h.

References ValueFlags::ReleaseRequested.

Referenced by CConstExpr::CheckLink().

virtual bool CValue::IsSelected ( ) [inline, virtual]

Definition at line 348 of file Value.h.

References ValueFlags::Selected.

virtual bool CValue::IsVisible ( ) [inline, virtual]

Definition at line 350 of file Value.h.

References ValueFlags::Visible.

STR_String CValue::op2str ( VALUE_OPERATOR op )

void CValue::ProcessReplica ( ) [virtual]

Makes sure any internal data owned by this class is deep copied.

Reimplemented from PyObjectPlus.

Reimplemented in BL_ActionActuator, BL_ArmatureActuator, BL_ArmatureObject, BL_DeformableGameObject, BL_ShapeActionActuator, SCA_IActuator, SCA_ISensor, SCA_PropertyActuator, SCA_RandomActuator, SCA_RandomSensor, KX_Camera, KX_CameraActuator, KX_FontObject, KX_GameObject, KX_NavMeshObject, KX_NearSensor, KX_ObjectActuator, KX_ParentActuator, KX_SCA_AddObjectActuator, KX_SceneActuator, KX_SoundActuator, KX_SteeringActuator, KX_TouchSensor, and KX_TrackToActuator.

Definition at line 470 of file Value.cpp.

References NULL, ValueFlags::RefCountDisabled, Release(), SetProperty(), and simple_enum_gen::val.

int CValue::Release ( ) [inline]

Definition at line 272 of file Value.h.

Referenced by KX_Scene::AddReplicaObject(), GPC_RenderTools::applyTransform(), KX_BlenderRenderTools::applyTransform(), BL_ConvertActuators(), BL_ConvertBlenderObjects(), BL_ConvertControllers(), BL_ConvertProperties(), BL_ConvertSensors(), BL_ConvertTextProperty(), KX_TouchSensor::BroadPhaseSensorFilterCollision(), SCA_ILogicBrick::Calc(), SCA_ILogicBrick::CalcFinal(), CIfExpr::Calculate(), COperator1Expr::Calculate(), COperator2Expr::Calculate(), CListValue::CheckEqual(), SCA_PropertySensor::CheckPropertyCondition(), ClearProperties(), SCA_ExpressionController::Delete(), SCA_PropertySensor::Delete(), SCA_ILogicBrick::Delete(), KX_Scene::DupliGroupRecurse(), KX_NetworkMessageSensor::Evaluate(), KX_RaySensor::Evaluate(), CParser::GetFloat(), CParser::GetValue(), KX_SCA_AddObjectActuator::InstantAddObject(), KX_SceneReplicationFunc(), KX_TrackToActuator::KX_TrackToActuator(), KX_Scene::LogicEndFrame(), KX_Scene::NewRemoveObject(), SCA_TimeEventManager::NextFrame(), KX_KetsjiEngine::PostProcessScene(), ProcessReplica(), SCA_ILogicBrick::RegisterEvent(), CListValue::ReleaseAndRemoveAll(), SCA_ILogicBrick::RemoveEvent(), RemoveProperty(), SCA_TimeEventManager::RemoveTimeProperty(), KX_Scene::ReplaceMesh(), SCA_PropertySensor::SCA_PropertySensor(), CParser::SetContext(), KX_GameObject::SetParent(), SetProperty(), SCA_ExpressionController::Trigger(), BL_ActionActuator::Update(), KX_ConstraintActuator::Update(), BL_ShapeActionActuator::Update(), KX_IpoActuator::Update(), SCA_PropertyActuator::Update(), SCA_RandomActuator::Update(), BL_SkinDeformer::~BL_SkinDeformer(), CConstExpr::~CConstExpr(), CIdentifierExpr::~CIdentifierExpr(), COperator2Expr::~COperator2Expr(), CParser::~CParser(), ImageRender::~ImageRender(), KX_Scene::~KX_Scene(), KX_TouchSensor::~KX_TouchSensor(), and SCA_DebugProp::~SCA_DebugProp().

bool CValue::RemoveProperty ( const char * inName ) [virtual]

Definition at line 305 of file Value.cpp.

References Release().

virtual void CValue::SetAffected ( bool bAffected = true ) [inline, virtual]

Definition at line 340 of file Value.h.

References ValueFlags::Affected.

Referenced by CConstExpr::ClearModified().

void CValue::SetColorOperator ( VALUE_OPERATOR op ) [virtual]

Set the wireframe color of this value depending on the CSG operator type <op>

Attention:: : not implemented

Definition at line 632 of file Value.cpp.

Referenced by CConstExpr::BroadcastOperators().

virtual void CValue::SetCustomFlag1 ( bool bCustomFlag ) [inline, virtual]

Definition at line 351 of file Value.h.

References ValueFlags::CustomFlag1.

Referenced by CVectorValue::CVectorValue().

virtual void CValue::SetCustomFlag2 ( bool bCustomFlag ) [inline, virtual]

Definition at line 354 of file Value.h.

References ValueFlags::CustomFlag2.

void CValue::SetError ( bool err ) [inline]

Definition at line 342 of file Value.h.

References err, and ValueFlags::Error.

Referenced by CErrorValue::CErrorValue().

virtual void CValue::SetModified ( bool bModified ) [inline, virtual]

Reimplemented in CListValue.

Definition at line 339 of file Value.h.

References ValueFlags::Modified.

Referenced by CEmptyValue::CEmptyValue(), CConstExpr::ClearModified(), CFloatValue::SetFloat(), CListValue::SetModified(), CBoolValue::SetValue(), CVectorValue::SetValue(), CFloatValue::SetValue(), CStringValue::SetValue(), CIntValue::SetValue(), and CVectorValue::SetVector().

virtual void CValue::SetName ( const char * name ) [pure virtual]

Implemented in CPropValue, SCA_ILogicBrick, and KX_GameObject.

Referenced by CVectorValue::CalcFinal().

void CValue::SetOwnerExpression ( class CExpression * expr ) [virtual]

Definition at line 627 of file Value.cpp.

Referenced by COperator2Expr::Calculate().

void CValue::SetPropertiesModified ( bool inModified ) [virtual]

Definition at line 367 of file Value.cpp.

void CValue::SetProperty	(	const STR_String &	name,
		CValue *	ioProperty
	)		`[virtual]`

Property Management.

Definition at line 210 of file Value.cpp.

References AddRef(), NULL, Release(), and trace.

Referenced by KX_Scene::AddReplicaObject(), BL_ConvertProperties(), BL_ConvertTextProperty(), ProcessReplica(), SCA_PropertyActuator::Update(), KX_IpoActuator::Update(), BL_ShapeActionActuator::Update(), and BL_ActionActuator::Update().

void CValue::SetProperty	(	const char *	name,
		CValue *	ioProperty
	)		`[virtual]`

Definition at line 232 of file Value.cpp.

References AddRef(), NULL, Release(), and trace.

void CValue::SetReleaseRequested ( bool bReleaseRequested ) [inline]

Definition at line 341 of file Value.h.

References ValueFlags::ReleaseRequested.

void CValue::SetSelected ( bool bSelected ) [inline]

Definition at line 338 of file Value.h.

References ValueFlags::Selected.

void CValue::SetValue ( CValue * newval ) [virtual]

Sets the value to this cvalue.

Attention:: this particular function should never be called. Why not abstract?

Reimplemented in CBoolValue, CFloatValue, CIntValue, CStringValue, and CVectorValue.

Definition at line 636 of file Value.cpp.

References assertd, and GetNumber().

Referenced by BL_ConvertTextProperty(), SCA_RandomActuator::Update(), SCA_PropertyActuator::Update(), KX_IpoActuator::Update(), BL_ShapeActionActuator::Update(), and BL_ActionActuator::Update().

void CValue::SetVisible ( bool vis ) [inline]

Definition at line 343 of file Value.h.

References ValueFlags::Visible.

double* CValue::ZeroVector ( ) [inline]

Definition at line 322 of file Value.h.

Referenced by CEmptyValue::GetVector3().

The documentation for this class was generated from the following files:

CValue Class Reference

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
