RAS_ICanvas Class Reference

#include <RAS_ICanvas.h>

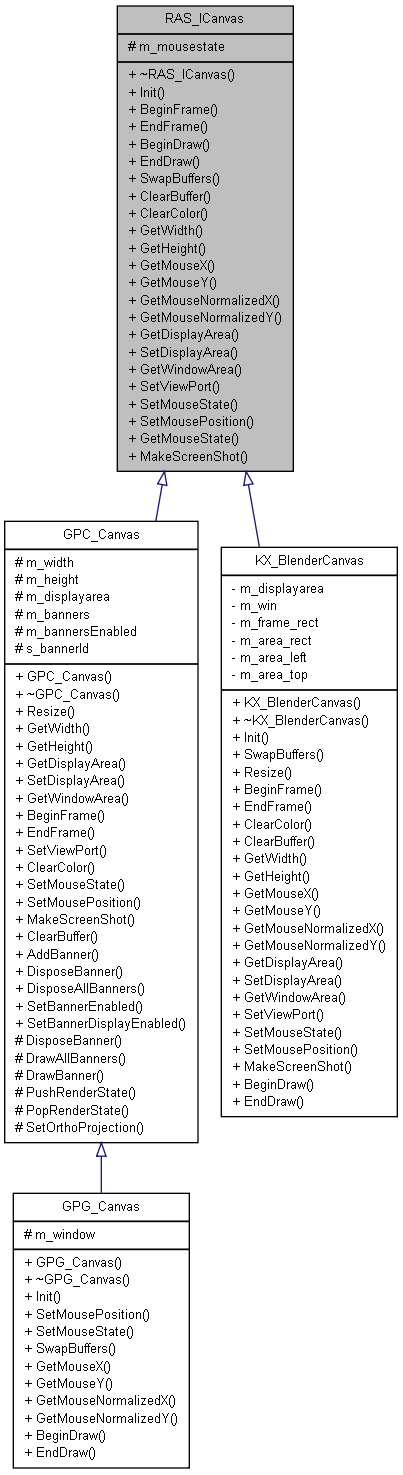

Inheritance diagram for RAS_ICanvas:

List of all members.

Public Types
enum	BufferType { COLOR_BUFFER = 1, DEPTH_BUFFER = 2 }
enum	RAS_MouseState { MOUSE_INVISIBLE = 1, MOUSE_WAIT, MOUSE_NORMAL }
Public Member Functions
virtual	~RAS_ICanvas ()
virtual void	Init ()=0
virtual void	BeginFrame ()=0
virtual void	EndFrame ()=0
virtual bool	BeginDraw ()=0
virtual void	EndDraw ()=0
virtual void	SwapBuffers ()=0
	probably needs some arguments for PS2 in future
virtual void	ClearBuffer (int type)=0
virtual void	ClearColor (float r, float g, float b, float a)=0
virtual int	GetWidth () const =0
virtual int	GetHeight () const =0
virtual int	GetMouseX (int x)=0
virtual int	GetMouseY (int y)=0
virtual float	GetMouseNormalizedX (int x)=0
virtual float	GetMouseNormalizedY (int y)=0
virtual const RAS_Rect &	GetDisplayArea () const =0
virtual void	SetDisplayArea (RAS_Rect *rect)=0
virtual RAS_Rect &	GetWindowArea ()=0
virtual void	SetViewPort (int x1, int y1, int x2, int y2)=0
virtual void	SetMouseState (RAS_MouseState mousestate)=0
virtual void	SetMousePosition (int x, int y)=0
virtual RAS_MouseState	GetMouseState ()
virtual void	MakeScreenShot (const char *filename)=0
Protected Attributes
RAS_MouseState	m_mousestate

---

Detailed Description

2D rendering device context. The connection from 3d rendercontext to 2d surface.

Definition at line 44 of file RAS_ICanvas.h.

---

Member Enumeration Documentation

enum RAS_ICanvas::BufferType

Enumerator:

COLOR_BUFFER
DEPTH_BUFFER

Definition at line 47 of file RAS_ICanvas.h.

enum RAS_ICanvas::RAS_MouseState

Enumerator:

MOUSE_INVISIBLE
MOUSE_WAIT
MOUSE_NORMAL

Definition at line 52 of file RAS_ICanvas.h.

---

Constructor & Destructor Documentation

virtual RAS_ICanvas::~RAS_ICanvas

(

)

[inline, virtual]

Definition at line 60 of file RAS_ICanvas.h.

---

Member Function Documentation

virtual bool RAS_ICanvas::BeginDraw

(

)

[pure virtual]

Initializes the canvas for drawing. Drawing to the canvas is only allowed between BeginDraw() and EndDraw().

Return values:

false	Acquiring the canvas failed.
true	Acquiring the canvas succeeded.

Implemented in KX_BlenderCanvas, and GPG_Canvas.

Referenced by KX_KetsjiEngine::BeginFrame(), KX_KetsjiEngine::Render(), and KX_KetsjiEngine::RenderDome().

virtual void RAS_ICanvas::BeginFrame

(

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by RAS_OpenGLRasterizer::BeginFrame().

virtual void RAS_ICanvas::ClearBuffer

(

int

type

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by RAS_OpenGLRasterizer::ClearColorBuffer(), RAS_OpenGLRasterizer::ClearDepthBuffer(), KX_KetsjiEngine::Render(), ImageRender::Render(), and KX_KetsjiEngine::RenderDome().

virtual void RAS_ICanvas::ClearColor	(	float	r,
		float	g,
		float	b,
		float	a
	)		[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by RAS_OpenGLRasterizer::ClearColorBuffer(), KX_KetsjiEngine::Render(), ImageRender::Render(), and KX_KetsjiEngine::RenderDome().

virtual void RAS_ICanvas::EndDraw

(

)

[pure virtual]

Unitializes the canvas for drawing.

Implemented in KX_BlenderCanvas, and GPG_Canvas.

Referenced by KX_KetsjiEngine::EndFrame().

virtual void RAS_ICanvas::EndFrame

(

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by ImageRender::calcImage(), RAS_OpenGLRasterizer::EndFrame(), and KX_KetsjiEngine::RenderDome().

virtual const RAS_Rect& RAS_ICanvas::GetDisplayArea

(

)

const [pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by KX_KetsjiEngine::GetSceneViewport().

virtual int RAS_ICanvas::GetHeight

(

)

const [pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by BL_ConvertBlenderObjects(), BL_ConvertSensors(), KX_Dome::CalculateImageSize(), KX_Dome::Draw(), KX_KetsjiEngine::GetSceneViewport(), KX_KetsjiEngine::Render(), KX_KetsjiEngine::RenderDome(), RAS_2DFilterManager::RenderFilters(), and RAS_OpenGLRasterizer::SetRenderArea().

virtual float RAS_ICanvas::GetMouseNormalizedX

(

int

x

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPG_Canvas.

virtual float RAS_ICanvas::GetMouseNormalizedY

(

int

y

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPG_Canvas.

virtual RAS_MouseState RAS_ICanvas::GetMouseState

(

)

[inline, virtual]

Definition at line 198 of file RAS_ICanvas.h.

References m_mousestate.

virtual int RAS_ICanvas::GetMouseX

(

int

x

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPG_Canvas.

Referenced by SCA_MouseManager::NextFrame().

virtual int RAS_ICanvas::GetMouseY

(

int

y

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPG_Canvas.

Referenced by SCA_MouseManager::NextFrame().

virtual int RAS_ICanvas::GetWidth

(

)

const [pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by BL_ConvertBlenderObjects(), BL_ConvertSensors(), KX_Dome::CalculateImageSize(), KX_Dome::Draw(), KX_KetsjiEngine::GetSceneViewport(), KX_KetsjiEngine::Render(), KX_KetsjiEngine::RenderDome(), RAS_2DFilterManager::RenderFilters(), and RAS_OpenGLRasterizer::SetRenderArea().

virtual RAS_Rect& RAS_ICanvas::GetWindowArea

(

)

[pure virtual]

Used to get canvas area within blender.

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by ImageRender::Render().

virtual void RAS_ICanvas::Init

(

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPG_Canvas.

virtual void RAS_ICanvas::MakeScreenShot

(

const char *

filename

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

virtual void RAS_ICanvas::SetDisplayArea

(

RAS_Rect *

rect

)

[pure virtual]

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by RAS_OpenGLRasterizer::SetRenderArea().

virtual void RAS_ICanvas::SetMousePosition	(	int	x,
		int	y
	)		[pure virtual]

Implemented in KX_BlenderCanvas, GPC_Canvas, and GPG_Canvas.

virtual void RAS_ICanvas::SetMouseState

(

RAS_MouseState

mousestate

)

[pure virtual]

Implemented in KX_BlenderCanvas, GPC_Canvas, and GPG_Canvas.

Referenced by KX_KetsjiEngine::Render(), KX_KetsjiEngine::RenderDome(), and StartKetsjiShell().

virtual void RAS_ICanvas::SetViewPort	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)		[pure virtual]

Set the visible vieport

Implemented in KX_BlenderCanvas, and GPC_Canvas.

Referenced by KX_KetsjiEngine::ClearFrame(), KX_Dome::Draw(), KX_KetsjiEngine::Render(), ImageRender::Render(), KX_KetsjiEngine::RenderDome(), and KX_Dome::RenderDomeFrame().

virtual void RAS_ICanvas::SwapBuffers

(

)

[pure virtual]

probably needs some arguments for PS2 in future

Implemented in KX_BlenderCanvas, and GPG_Canvas.

Referenced by RAS_OpenGLRasterizer::SwapBuffers().

---

Member Data Documentation

RAS_MouseState RAS_ICanvas::m_mousestate [protected]

Definition at line 210 of file RAS_ICanvas.h.

Referenced by GetMouseState(), KX_BlenderCanvas::SetMouseState(), and GPG_Canvas::SetMouseState().

---

The documentation for this class was generated from the following file:

• RAS_ICanvas.h
