GPC_Canvas Class Reference

#include <GPC_Canvas.h>

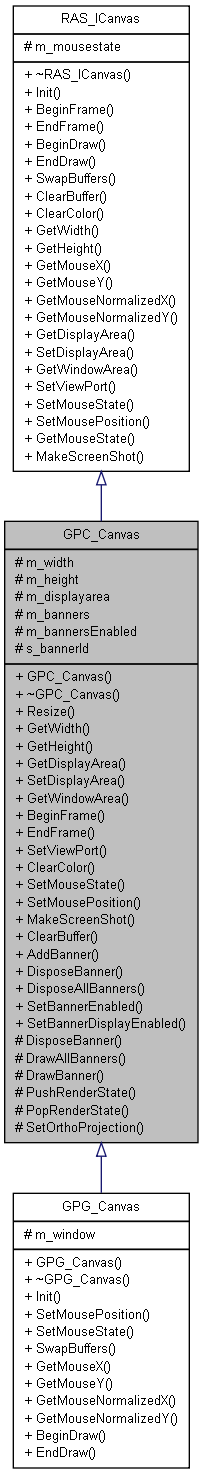

Inheritance diagram for GPC_Canvas:

List of all members.

Classes
struct	CanvasRenderState
struct	TBannerData
Public Types
enum	TBannerAlignment { alignTopLeft, alignBottomRight }
typedef int	TBannerId
Public Member Functions
	GPC_Canvas (int width, int height)
virtual	~GPC_Canvas ()
void	Resize (int width, int height)
int	GetWidth () const
int	GetHeight () const
const RAS_Rect &	GetDisplayArea () const
void	SetDisplayArea (RAS_Rect *rect)
RAS_Rect &	GetWindowArea ()
void	BeginFrame ()
void	EndFrame ()
void	SetViewPort (int x1, int y1, int x2, int y2)
void	ClearColor (float r, float g, float b, float a)
void	SetMouseState (RAS_MouseState mousestate)
void	SetMousePosition (int x, int y)
virtual void	MakeScreenShot (const char *filename)
void	ClearBuffer (int type)
TBannerId	AddBanner (unsigned int bannerWidth, unsigned int bannerHeight, unsigned int imageWidth, unsigned int imageHeight, unsigned char *imageData, TBannerAlignment alignment=alignTopLeft, bool enabled=true)
void	DisposeBanner (TBannerId id)
void	DisposeAllBanners ()
void	SetBannerEnabled (TBannerId id, bool enabled=true)
void	SetBannerDisplayEnabled (bool enabled=true)
Protected Types
typedef std::map< TBannerId, TBannerData >	TBannerMap
Protected Member Functions
void	DisposeBanner (TBannerData &banner)
void	DrawAllBanners (void)
void	DrawBanner (TBannerData &banner)
void	PushRenderState (CanvasRenderState &render_state)
void	PopRenderState (const CanvasRenderState &render_state)
void	SetOrthoProjection ()
Protected Attributes
int	m_width
int	m_height
RAS_Rect	m_displayarea
TBannerMap	m_banners
bool	m_bannersEnabled
Static Protected Attributes
static TBannerId	s_bannerId = 0

---

Detailed Description

Definition at line 48 of file GPC_Canvas.h.

---

Member Typedef Documentation

typedef int GPC_Canvas::TBannerId

Definition at line 59 of file GPC_Canvas.h.

typedef std::map<TBannerId, TBannerData> GPC_Canvas::TBannerMap [protected]

Definition at line 83 of file GPC_Canvas.h.

---

Member Enumeration Documentation

enum GPC_Canvas::TBannerAlignment

Used to position banners in the canvas.

Enumerator:

alignTopLeft
alignBottomRight

Definition at line 54 of file GPC_Canvas.h.

---

Constructor & Destructor Documentation

GPC_Canvas::GPC_Canvas	(	int	width,
		int	height
	)

Definition at line 47 of file GPC_Canvas.cpp.

GPC_Canvas::~GPC_Canvas

(

)

[virtual]

Definition at line 58 of file GPC_Canvas.cpp.

References DisposeAllBanners().

---

Member Function Documentation

GPC_Canvas::TBannerId GPC_Canvas::AddBanner	(	unsigned int	bannerWidth,
		unsigned int	bannerHeight,
		unsigned int	imageWidth,
		unsigned int	imageHeight,
		unsigned char *	imageData,
		TBannerAlignment	alignment = alignTopLeft,
		bool	enabled = true
	)

provided by this class.

Enables display of a banner. The image data is copied inside.

Parameters:

bannerWidth	Display width of the banner.
bannerHeight	Display height of the banner.
imageWidth	Width of the banner image in pixels.
imageHeight	Height of the banner image in pixels.
imageData	Pointer to the pixels of the image to display.
alignement	Where the banner will be positioned on the canvas.
enabled	Whether the banner will be displayed intiallly.

Returns:

A banner id.

Definition at line 133 of file GPC_Canvas.cpp.

References GPC_Canvas::TBannerData::alignment, GPC_Canvas::TBannerData::displayHeight, GPC_Canvas::TBannerData::displayWidth, GPC_Canvas::TBannerData::enabled, GPC_Canvas::TBannerData::imageData, GPC_Canvas::TBannerData::imageHeight, GPC_Canvas::TBannerData::imageWidth, m_banners, s_bannerId, and GPC_Canvas::TBannerData::textureName.

void GPC_Canvas::BeginFrame

(

)

[inline, virtual]

Implements RAS_ICanvas.

Definition at line 144 of file GPC_Canvas.h.

void GPC_Canvas::ClearBuffer

(

int

type

)

[virtual]

Implements RAS_ICanvas.

Definition at line 119 of file GPC_Canvas.cpp.

References RAS_ICanvas::COLOR_BUFFER, and RAS_ICanvas::DEPTH_BUFFER.

void GPC_Canvas::ClearColor	(	float	r,
		float	g,
		float	b,
		float	a
	)		[virtual]

Implements RAS_ICanvas.

Definition at line 95 of file GPC_Canvas.cpp.

References g.

void GPC_Canvas::DisposeAllBanners

(

)

Disposes all the banners.

Definition at line 166 of file GPC_Canvas.cpp.

References DisposeBanner(), and m_banners.

Referenced by ~GPC_Canvas().

void GPC_Canvas::DisposeBanner

(

TBannerId

id

)

Disposes a banner.

Parameters:

id	Bannner to be disposed.

Definition at line 157 of file GPC_Canvas.cpp.

References m_banners.

Referenced by DisposeAllBanners().

void GPC_Canvas::DisposeBanner

(

TBannerData &

banner

)

[protected]

Disposes a banner.

Parameters:

it	Bannner to be disposed.

Definition at line 190 of file GPC_Canvas.cpp.

References GPC_Canvas::TBannerData::imageData, and GPC_Canvas::TBannerData::textureName.

void GPC_Canvas::DrawAllBanners

(

void

)

[protected]

Draws all the banners enabled.

Definition at line 201 of file GPC_Canvas.cpp.

References DrawBanner(), m_banners, m_bannersEnabled, PopRenderState(), PushRenderState(), and SetOrthoProjection().

Referenced by EndFrame().

void GPC_Canvas::DrawBanner

(

TBannerData &

banner

)

[protected]

Draws a banner.

Definition at line 235 of file GPC_Canvas.cpp.

References GPC_Canvas::TBannerData::alignment, alignTopLeft, GPC_Canvas::TBannerData::displayHeight, GPC_Canvas::TBannerData::displayWidth, GPC_Canvas::TBannerData::enabled, GPC_Canvas::TBannerData::imageData, GPC_Canvas::TBannerData::imageWidth, m_height, m_width, and GPC_Canvas::TBannerData::textureName.

Referenced by DrawAllBanners().

void GPC_Canvas::EndFrame

(

)

[virtual]

Draws overlay banners and progress bars.

Implements RAS_ICanvas.

Definition at line 88 of file GPC_Canvas.cpp.

References DrawAllBanners(), and m_bannersEnabled.

const RAS_Rect& GPC_Canvas::GetDisplayArea

(

)

const [inline, virtual]

Implements RAS_ICanvas.

Definition at line 125 of file GPC_Canvas.h.

References m_displayarea.

int GPC_Canvas::GetHeight

(

)

const [inline, virtual]

Implements RAS_ICanvas.

Definition at line 118 of file GPC_Canvas.h.

References m_height.

Referenced by GPG_Canvas::GetMouseNormalizedY(), and MakeScreenShot().

int GPC_Canvas::GetWidth

(

)

const [inline, virtual]

inherited from abstract base class RAS_ICanvas.

Implements RAS_ICanvas.

Definition at line 112 of file GPC_Canvas.h.

References m_width.

Referenced by GPG_Canvas::GetMouseNormalizedX(), and MakeScreenShot().

RAS_Rect& GPC_Canvas::GetWindowArea

(

)

[inline, virtual]

Used to get canvas area within blender.

Implements RAS_ICanvas.

Definition at line 138 of file GPC_Canvas.h.

References m_displayarea.

void GPC_Canvas::MakeScreenShot

(

const char *

filename

)

[virtual]

Implements RAS_ICanvas.

Definition at line 384 of file GPC_Canvas.cpp.

References GetHeight(), GetWidth(), i, and NULL.

void GPC_Canvas::PopRenderState

(

const CanvasRenderState &

render_state

)

[protected]

Definition at line 338 of file GPC_Canvas.cpp.

References GPC_Canvas::CanvasRenderState::oldBlend, GPC_Canvas::CanvasRenderState::oldBlendDst, GPC_Canvas::CanvasRenderState::oldBlendSrc, GPC_Canvas::CanvasRenderState::oldColor, GPC_Canvas::CanvasRenderState::oldDepthTest, GPC_Canvas::CanvasRenderState::oldFog, GPC_Canvas::CanvasRenderState::oldLighting, GPC_Canvas::CanvasRenderState::oldTexture2D, and GPC_Canvas::CanvasRenderState::oldWriteMask.

Referenced by DrawAllBanners().

void GPC_Canvas::PushRenderState

(

CanvasRenderState &

render_state

)

[protected]

Definition at line 308 of file GPC_Canvas.cpp.

References GPC_Canvas::CanvasRenderState::oldBlend, GPC_Canvas::CanvasRenderState::oldBlendDst, GPC_Canvas::CanvasRenderState::oldBlendSrc, GPC_Canvas::CanvasRenderState::oldColor, GPC_Canvas::CanvasRenderState::oldDepthTest, GPC_Canvas::CanvasRenderState::oldFog, GPC_Canvas::CanvasRenderState::oldLighting, GPC_Canvas::CanvasRenderState::oldTexture2D, and GPC_Canvas::CanvasRenderState::oldWriteMask.

Referenced by DrawAllBanners().

void GPC_Canvas::Resize	(	int	width,
		int	height
	)

Definition at line 82 of file GPC_Canvas.cpp.

References m_height, and m_width.

Referenced by GPG_Canvas::GPG_Canvas(), and GPG_Application::processEvent().

void GPC_Canvas::SetBannerDisplayEnabled

(

bool

enabled = true

)

Enables or disables display of all banners.

Parameters:

enabled

New state of the banners.

Definition at line 184 of file GPC_Canvas.cpp.

References m_bannersEnabled.

Referenced by GPC_Engine::Start().

void GPC_Canvas::SetBannerEnabled	(	TBannerId	id,
		bool	enabled = true
	)

Enables or disables display of a banner.

Parameters:

id	Banner id of the banner to be enabled/disabled.
enabled	New state of the banner.

Definition at line 175 of file GPC_Canvas.cpp.

References m_banners.

void GPC_Canvas::SetDisplayArea

(

RAS_Rect *

rect

)

[inline, virtual]

Implements RAS_ICanvas.

Definition at line 131 of file GPC_Canvas.h.

References m_displayarea.

void GPC_Canvas::SetMousePosition	(	int	x,
		int	y
	)		[inline, virtual]

Implements RAS_ICanvas.

Reimplemented in GPG_Canvas.

Definition at line 168 of file GPC_Canvas.h.

void GPC_Canvas::SetMouseState

(

RAS_MouseState

mousestate

)

[inline, virtual]

inherited from abstract base class RAS_ICanvas.

Semantics are not yet honoured.

Implements RAS_ICanvas.

Reimplemented in GPG_Canvas.

Definition at line 163 of file GPC_Canvas.h.

void GPC_Canvas::SetOrthoProjection

(

)

[protected]

Set up an orthogonal viewing,model and texture matrix for banners and progress bars.

Definition at line 368 of file GPC_Canvas.cpp.

References m_height, and m_width.

Referenced by DrawAllBanners().

void GPC_Canvas::SetViewPort	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)		[virtual]

Set the visible vieport

Implements RAS_ICanvas.

Definition at line 100 of file GPC_Canvas.cpp.

---

Member Data Documentation

TBannerMap GPC_Canvas::m_banners [protected]

Storage for the banners to display.

Definition at line 94 of file GPC_Canvas.h.

Referenced by AddBanner(), DisposeAllBanners(), DisposeBanner(), DrawAllBanners(), and SetBannerEnabled().

bool GPC_Canvas::m_bannersEnabled [protected]

State of banner display.

Definition at line 96 of file GPC_Canvas.h.

Referenced by DrawAllBanners(), EndFrame(), and SetBannerDisplayEnabled().

RAS_Rect GPC_Canvas::m_displayarea [protected]

Rect that defines the area used for rendering, relative to the context

Definition at line 91 of file GPC_Canvas.h.

Referenced by GetDisplayArea(), GetWindowArea(), and SetDisplayArea().

int GPC_Canvas::m_height [protected]

Height of the context.

Definition at line 88 of file GPC_Canvas.h.

Referenced by DrawBanner(), GetHeight(), Resize(), and SetOrthoProjection().

int GPC_Canvas::m_width [protected]

Width of the context.

Definition at line 86 of file GPC_Canvas.h.

Referenced by DrawBanner(), GetWidth(), Resize(), and SetOrthoProjection().

GPC_Canvas::TBannerId GPC_Canvas::s_bannerId = 0 [static, protected]

Definition at line 269 of file GPC_Canvas.h.

Referenced by AddBanner().

---

The documentation for this class was generated from the following files:

• GPC_Canvas.h
• GPC_Canvas.cpp
