Blender: AUD_JackDevice Class Reference

Blender V2.61 - r43446

#include <AUD_JackDevice.h>

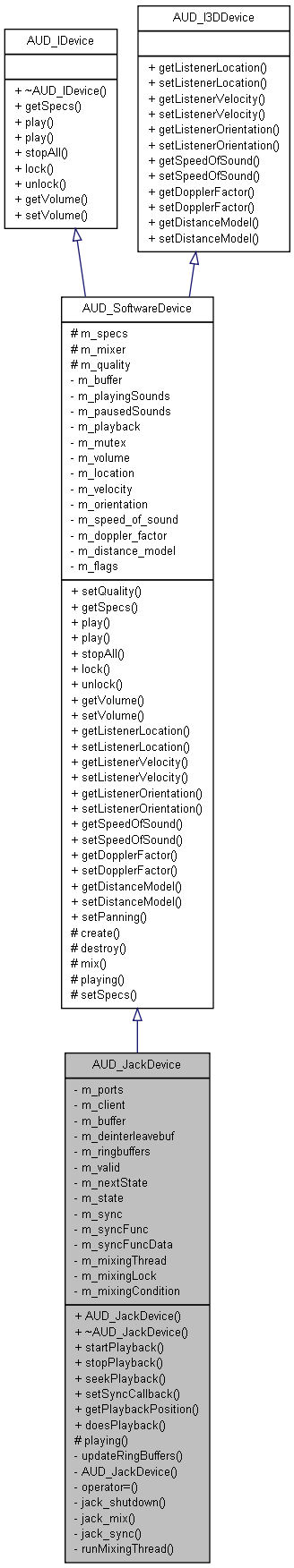

Inheritance diagram for AUD_JackDevice:

Inheritance graph

[legend]

List of all members.

Public Member Functions
	AUD_JackDevice (std::string name, AUD_DeviceSpecs specs, int buffersize=AUD_DEFAULT_BUFFER_SIZE)
virtual	~AUD_JackDevice ()
void	startPlayback ()
void	stopPlayback ()
void	seekPlayback (float time)
void	setSyncCallback (AUD_syncFunction sync, void *data)
float	getPlaybackPosition ()
bool	doesPlayback ()
Protected Member Functions
virtual void	playing (bool playing)

Detailed Description

This device plays back through Jack.

Definition at line 51 of file AUD_JackDevice.h.

Constructor & Destructor Documentation

AUD_JackDevice::AUD_JackDevice	(	std::string	name,
		AUD_DeviceSpecs	specs,
		int	buffersize = `AUD_DEFAULT_BUFFER_SIZE`
	)

Creates a Jack client for audio output.

Parameters:

name	The client name.
specs	The wanted audio specification, where only the channel count is important.
buffersize	The size of the internal buffer.

Exceptions:

AUD_Exception Thrown if the audio device cannot be opened.

Definition at line 183 of file AUD_JackDevice.cpp.

References AUD_CHANNELS_INVALID, AUD_CHANNELS_STEREO, AUD_ERROR_JACK, AUD_FORMAT_FLOAT32, AUD_THROW, AUD_DeviceSpecs::channels, AUD_SoftwareDevice::create(), AUD_SoftwareDevice::destroy(), AUD_DeviceSpecs::format, addon::engine::free(), i, AUD_SoftwareDevice::m_specs, NULL, options, AUD_DeviceSpecs::rate, and AUD_Buffer::resize().

AUD_JackDevice::~AUD_JackDevice ( ) [virtual]

Closes the Jack client.

Definition at line 282 of file AUD_JackDevice.cpp.

References AUD_DeviceSpecs::channels, AUD_SoftwareDevice::destroy(), AUD_SoftwareDevice::m_specs, and NULL.

Member Function Documentation

bool AUD_JackDevice::doesPlayback ( )

Returns whether jack transport plays back.

Returns:: Whether jack transport plays back.

Definition at line 340 of file AUD_JackDevice.cpp.

References NULL, and state.

Referenced by AUD_doesPlayback().

float AUD_JackDevice::getPlaybackPosition ( )

Retrieves the jack transport playback time.

Returns:: The current time position.

Definition at line 333 of file AUD_JackDevice.cpp.

References AUD_SoftwareDevice::m_specs, and AUD_DeviceSpecs::rate.

Referenced by AUD_getSequencerPosition().

void AUD_JackDevice::playing ( bool playing ) [protected, virtual]

This function tells the device, to start or pause playback.

Parameters:

playing True if device should playback.

Implements AUD_SoftwareDevice.

Definition at line 304 of file AUD_JackDevice.cpp.

void AUD_JackDevice::seekPlayback ( float time )

Seeks jack transport playback.

Parameters:

time	The time to seek to.

Definition at line 321 of file AUD_JackDevice.cpp.

References AUD_SoftwareDevice::m_specs, and AUD_DeviceSpecs::rate.

Referenced by AUD_seekSequencer().

void AUD_JackDevice::setSyncCallback	(	AUD_syncFunction	sync,
		void *	data
	)

Sets the sync callback for jack transport playback.

Parameters:

sync	The callback function.
data	The data for the function.

Definition at line 327 of file AUD_JackDevice.cpp.

References data.

void AUD_JackDevice::startPlayback ( )

Starts jack transport playback.

Definition at line 309 of file AUD_JackDevice.cpp.

Referenced by AUD_startPlayback().

void AUD_JackDevice::stopPlayback ( )

Stops jack transport playback.

Definition at line 315 of file AUD_JackDevice.cpp.

Referenced by AUD_stopPlayback().

The documentation for this class was generated from the following files:
