#include <AUD_SoftwareDevice.h>

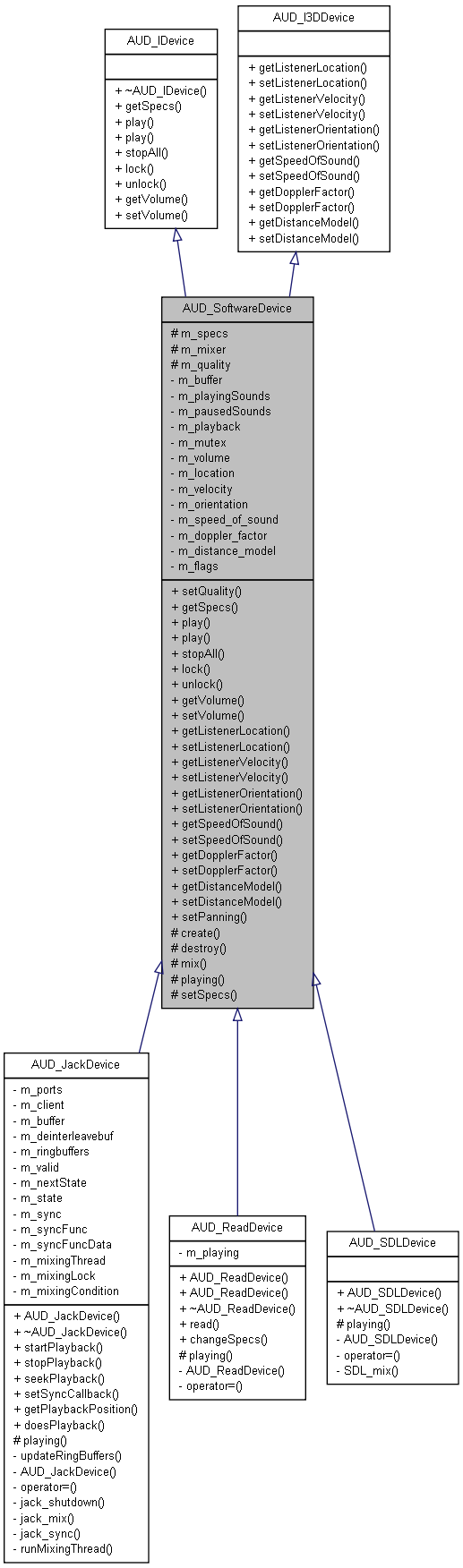

Inheritance diagram for AUD_SoftwareDevice:

[legend]

Classes
class	AUD_SoftwareHandle
	Saves the data for playback. More...
Public Member Functions
void	setQuality (bool quality)
virtual AUD_DeviceSpecs	getSpecs () const
virtual AUD_Reference < AUD_IHandle >	play (AUD_Reference< AUD_IReader > reader, bool keep=false)
virtual AUD_Reference < AUD_IHandle >	play (AUD_Reference< AUD_IFactory > factory, bool keep=false)
virtual void	stopAll ()
virtual void	lock ()
virtual void	unlock ()
virtual float	getVolume () const
virtual void	setVolume (float volume)
virtual AUD_Vector3	getListenerLocation () const
virtual void	setListenerLocation (const AUD_Vector3 &location)
virtual AUD_Vector3	getListenerVelocity () const
virtual void	setListenerVelocity (const AUD_Vector3 &velocity)
virtual AUD_Quaternion	getListenerOrientation () const
virtual void	setListenerOrientation (const AUD_Quaternion &orientation)
virtual float	getSpeedOfSound () const
virtual void	setSpeedOfSound (float speed)
virtual float	getDopplerFactor () const
virtual void	setDopplerFactor (float factor)
virtual AUD_DistanceModel	getDistanceModel () const
virtual void	setDistanceModel (AUD_DistanceModel model)
Static Public Member Functions
static void	setPanning (AUD_IHandle *handle, float pan)
Protected Types
typedef std::list < AUD_Reference < AUD_SoftwareHandle > >::iterator	AUD_HandleIterator
Protected Member Functions
void	create ()
void	destroy ()
void	mix (data_t *buffer, int length)
virtual void	playing (bool playing)=0
void	setSpecs (AUD_Specs specs)
Protected Attributes
AUD_DeviceSpecs	m_specs
AUD_Reference< AUD_Mixer >	m_mixer
bool	m_quality

Detailed Description

This device plays is a generic device with software mixing. Classes implementing this have to:

Implement the playing function.
Prepare the m_specs, m_mixer variables.
Call the create and destroy functions.
Call the mix function to retrieve their audio data.

Definition at line 54 of file AUD_SoftwareDevice.h.

Member Typedef Documentation

typedef std::list<AUD_Reference<AUD_SoftwareHandle> >::iterator AUD_SoftwareDevice::AUD_HandleIterator [protected]

Definition at line 209 of file AUD_SoftwareDevice.h.

Member Function Documentation

void AUD_SoftwareDevice::create ( ) [protected]

Initializes member variables.

Definition at line 656 of file AUD_SoftwareDevice.cpp.

References AUD_DISTANCE_MODEL_INVERSE_CLAMPED, m_mixer, m_quality, and m_specs.

Referenced by AUD_JackDevice::AUD_JackDevice(), AUD_ReadDevice::AUD_ReadDevice(), and AUD_SDLDevice::AUD_SDLDevice().

void AUD_SoftwareDevice::destroy ( ) [protected]

Uninitializes member variables.

Definition at line 676 of file AUD_SoftwareDevice.cpp.

References playing().

Referenced by AUD_JackDevice::AUD_JackDevice(), AUD_JackDevice::~AUD_JackDevice(), AUD_ReadDevice::~AUD_ReadDevice(), and AUD_SDLDevice::~AUD_SDLDevice().

AUD_DistanceModel AUD_SoftwareDevice::getDistanceModel ( ) const [virtual]

Retrieves the distance model.

Returns:: The distance model.

Implements AUD_I3DDevice.

Definition at line 942 of file AUD_SoftwareDevice.cpp.

float AUD_SoftwareDevice::getDopplerFactor ( ) const [virtual]

Retrieves the doppler factor. This value is a scaling factor for the velocity vectors of sources and listener which is used while calculating the doppler effect.

Returns:: The doppler factor.

Implements AUD_I3DDevice.

Definition at line 928 of file AUD_SoftwareDevice.cpp.

AUD_Vector3 AUD_SoftwareDevice::getListenerLocation ( ) const [virtual]

Retrieves the listener location.

Returns:: The listener location.

Implements AUD_I3DDevice.

Definition at line 888 of file AUD_SoftwareDevice.cpp.

AUD_Quaternion AUD_SoftwareDevice::getListenerOrientation ( ) const [virtual]

Retrieves the listener orientation.

Returns:: The listener orientation as quaternion.

Implements AUD_I3DDevice.

Definition at line 908 of file AUD_SoftwareDevice.cpp.

AUD_Vector3 AUD_SoftwareDevice::getListenerVelocity ( ) const [virtual]

Retrieves the listener velocity.

Returns:: The listener velocity.

Implements AUD_I3DDevice.

Definition at line 898 of file AUD_SoftwareDevice.cpp.

AUD_DeviceSpecs AUD_SoftwareDevice::getSpecs ( ) const [virtual]

Returns the specification of the device.

Implements AUD_IDevice.

Definition at line 804 of file AUD_SoftwareDevice.cpp.

References m_specs.

float AUD_SoftwareDevice::getSpeedOfSound ( ) const [virtual]

Retrieves the speed of sound. This value is needed for doppler effect calculation.

Returns:: The speed of sound.

Implements AUD_I3DDevice.

Definition at line 918 of file AUD_SoftwareDevice.cpp.

float AUD_SoftwareDevice::getVolume ( ) const [virtual]

Retrieves the overall device volume.

Returns:: The overall device volume.

Implements AUD_IDevice.

Definition at line 874 of file AUD_SoftwareDevice.cpp.

void AUD_SoftwareDevice::lock ( ) [virtual]

Locks the device. Used to make sure that between lock and unlock, no buffers are read, so that it is possible to start, resume, pause, stop or seek several playback handles simultaneously.

Warning:: Make sure the locking time is as small as possible to avoid playback delays that result in unexpected noise and cracks.

Implements AUD_IDevice.

Definition at line 864 of file AUD_SoftwareDevice.cpp.

Referenced by mix(), play(), stopAll(), and AUD_SDLDevice::~AUD_SDLDevice().

void AUD_SoftwareDevice::mix	(	data_t *	buffer,
		int	length
	)		`[protected]`

Mixes the next samples into the buffer.

Parameters:

buffer	The target buffer.
length	The length in samples to be filled.

Definition at line 690 of file AUD_SoftwareDevice.cpp.

References AUD_Buffer::assureSize(), AUD_SAMPLE_SIZE, AUD_Buffer::getBuffer(), len(), length(), lock(), m_mixer, m_specs, and unlock().

Referenced by AUD_ReadDevice::read().

AUD_Reference< AUD_IHandle > AUD_SoftwareDevice::play	(	AUD_Reference< AUD_IReader >	reader,
		bool	keep = `false`
	)		`[virtual]`

Plays a sound source.

Parameters:

reader	The reader to play.
keep	When keep is true the sound source will not be deleted but set to paused when its end has been reached.

Returns:: Returns a handle with which the playback can be controlled. This is NULL if the sound couldn't be played back.

Exceptions:

AUD_Exception Thrown if there's an unexpected (from the device side) error during creation of the reader.

Implements AUD_IDevice.

Definition at line 809 of file AUD_SoftwareDevice.cpp.

References AUD_DeviceSpecs::channels, AUD_Reference< T >::isNull(), lock(), m_quality, m_specs, playing(), AUD_DeviceSpecs::specs, and unlock().

Referenced by AUD_openMixdownDevice(), AUD_SequencerHandle::AUD_SequencerHandle(), play(), and AUD_SequencerHandle::update().

AUD_Reference< AUD_IHandle > AUD_SoftwareDevice::play	(	AUD_Reference< AUD_IFactory >	factory,
		bool	keep = `false`
	)		`[virtual]`

Plays a sound source.

Parameters:

factory	The factory to create the reader for the sound source.
keep	When keep is true the sound source will not be deleted but set to paused when its end has been reached.

Returns:: Returns a handle with which the playback can be controlled. This is NULL if the sound couldn't be played back.

Exceptions:

AUD_Exception Thrown if there's an unexpected (from the device side) error during creation of the reader.

Implements AUD_IDevice.

Definition at line 846 of file AUD_SoftwareDevice.cpp.

References play().

virtual void AUD_SoftwareDevice::playing ( bool playing ) [protected, pure virtual]

This function tells the device, to start or pause playback.

Parameters:

playing True if device should playback.

Implemented in AUD_ReadDevice, AUD_JackDevice, and AUD_SDLDevice.

Referenced by destroy(), and play().

void AUD_SoftwareDevice::setDistanceModel ( AUD_DistanceModel model ) [virtual]

Sets the distance model.

Parameters:

model distance model.

Implements AUD_I3DDevice.

Definition at line 947 of file AUD_SoftwareDevice.cpp.

References AUD_DISTANCE_MODEL_INVALID, and AUD_RENDER_DISTANCE.

Referenced by AUD_SequencerReader::read().

void AUD_SoftwareDevice::setDopplerFactor ( float factor ) [virtual]

Sets the doppler factor. This value is a scaling factor for the velocity vectors of sources and listener which is used while calculating the doppler effect.

Parameters:

factor The new doppler factor.

Implements AUD_I3DDevice.

Definition at line 933 of file AUD_SoftwareDevice.cpp.

References AUD_RENDER_DOPPLER.

Referenced by AUD_SequencerReader::read().

void AUD_SoftwareDevice::setListenerLocation ( const AUD_Vector3 & location ) [virtual]

Sets the listener location.

Parameters:

location The new location.

Implements AUD_I3DDevice.

Definition at line 893 of file AUD_SoftwareDevice.cpp.
