AUD_LowpassFactory Class Reference

#include <AUD_LowpassFactory.h>

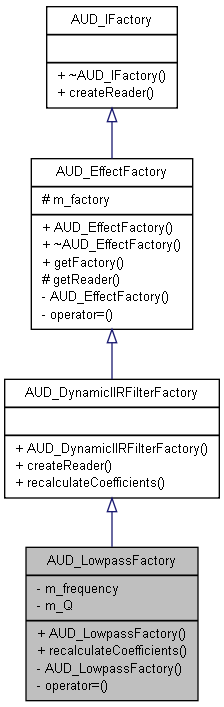

Inheritance diagram for AUD_LowpassFactory:

List of all members.

Public Member Functions
	AUD_LowpassFactory (AUD_Reference< AUD_IFactory > factory, float frequency, float Q=1.0f)
virtual void	recalculateCoefficients (AUD_SampleRate rate, std::vector< float > &b, std::vector< float > &a)

---

Detailed Description

This factory creates a lowpass filter reader.

Definition at line 38 of file AUD_LowpassFactory.h.

---

Constructor & Destructor Documentation

AUD_LowpassFactory::AUD_LowpassFactory	(	AUD_Reference< AUD_IFactory >	factory,
		float	frequency,
		float	Q = 1.0f
	)

Creates a new lowpass factory.

Parameters:

factory	The input factory.
frequency	The cutoff frequency.
Q	The Q factor.

Definition at line 39 of file AUD_LowpassFactory.cpp.

---

Member Function Documentation

void AUD_LowpassFactory::recalculateCoefficients	(	AUD_SampleRate	rate,
		std::vector< float > &	b,
		std::vector< float > &	a
	)		[virtual]

Recalculates the filter coefficients.

Parameters:

	rate	The sample rate of the audio data.
[out]	b	The input filter coefficients.
[out]	a	The output filter coefficients.

Implements AUD_DynamicIIRFilterFactory.

Definition at line 47 of file AUD_LowpassFactory.cpp.

References cos(), M_PI, norm(), and sin().

---

The documentation for this class was generated from the following files:

• AUD_LowpassFactory.h
• AUD_LowpassFactory.cpp
