btBU_Simplex1to4 Class Reference

The btBU_Simplex1to4 implements tetrahedron, triangle, line, vertex collision shapes. In most cases it is better to use btConvexHullShape instead. More...

#include <btTetrahedronShape.h>

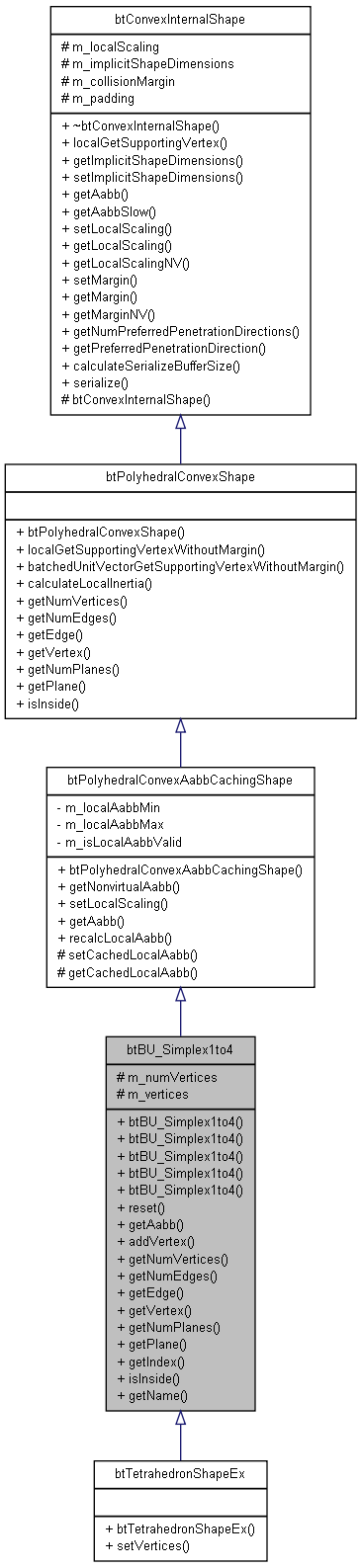

Inheritance diagram for btBU_Simplex1to4:

List of all members.

Public Member Functions
	btBU_Simplex1to4 ()
	btBU_Simplex1to4 (const btVector3 &pt0)
	btBU_Simplex1to4 (const btVector3 &pt0, const btVector3 &pt1)
	btBU_Simplex1to4 (const btVector3 &pt0, const btVector3 &pt1, const btVector3 &pt2)
	btBU_Simplex1to4 (const btVector3 &pt0, const btVector3 &pt1, const btVector3 &pt2, const btVector3 &pt3)
void	reset ()
virtual void	getAabb (const btTransform &t, btVector3 &aabbMin, btVector3 &aabbMax) const
	getAabb's default implementation is brute force, expected derived classes to implement a fast dedicated version
void	addVertex (const btVector3 &pt)
virtual int	getNumVertices () const
virtual int	getNumEdges () const
virtual void	getEdge (int i, btVector3 &pa, btVector3 &pb) const
virtual void	getVertex (int i, btVector3 &vtx) const
virtual int	getNumPlanes () const
virtual void	getPlane (btVector3 &planeNormal, btVector3 &planeSupport, int i) const
virtual int	getIndex (int i) const
virtual bool	isInside (const btVector3 &pt, btScalar tolerance) const
virtual const char *	getName () const
	getName is for debugging
Protected Attributes
int	m_numVertices
btVector3	m_vertices [4]

---

Detailed Description

The btBU_Simplex1to4 implements tetrahedron, triangle, line, vertex collision shapes. In most cases it is better to use btConvexHullShape instead.

Definition at line 25 of file btTetrahedronShape.h.

---

Constructor & Destructor Documentation

btBU_Simplex1to4::btBU_Simplex1to4

(

)

Definition at line 19 of file btTetrahedronShape.cpp.

References TETRAHEDRAL_SHAPE_PROXYTYPE.

btBU_Simplex1to4::btBU_Simplex1to4

(

const btVector3 &

pt0

)

Definition at line 25 of file btTetrahedronShape.cpp.

References addVertex(), and TETRAHEDRAL_SHAPE_PROXYTYPE.

btBU_Simplex1to4::btBU_Simplex1to4	(	const btVector3 &	pt0,
		const btVector3 &	pt1
	)

Definition at line 32 of file btTetrahedronShape.cpp.

References addVertex(), and TETRAHEDRAL_SHAPE_PROXYTYPE.

btBU_Simplex1to4::btBU_Simplex1to4	(	const btVector3 &	pt0,
		const btVector3 &	pt1,
		const btVector3 &	pt2
	)

Definition at line 40 of file btTetrahedronShape.cpp.

References addVertex(), and TETRAHEDRAL_SHAPE_PROXYTYPE.

btBU_Simplex1to4::btBU_Simplex1to4	(	const btVector3 &	pt0,
		const btVector3 &	pt1,
		const btVector3 &	pt2,
		const btVector3 &	pt3
	)

Definition at line 49 of file btTetrahedronShape.cpp.

References addVertex(), and TETRAHEDRAL_SHAPE_PROXYTYPE.

---

Member Function Documentation

void btBU_Simplex1to4::addVertex

(

const btVector3 &

pt

)

Definition at line 82 of file btTetrahedronShape.cpp.

References m_numVertices, m_vertices, and btPolyhedralConvexAabbCachingShape::recalcLocalAabb().

Referenced by btBU_Simplex1to4().

void btBU_Simplex1to4::getAabb	(	const btTransform &	t,
		btVector3 &	aabbMin,
		btVector3 &	aabbMax
	)		const [virtual]

getAabb's default implementation is brute force, expected derived classes to implement a fast dedicated version

Reimplemented from btPolyhedralConvexAabbCachingShape.

Definition at line 60 of file btTetrahedronShape.cpp.

References BT_LARGE_FLOAT, i, m_numVertices, and m_vertices.

void btBU_Simplex1to4::getEdge	(	int	i,
		btVector3 &	pa,
		btVector3 &	pb
	)		const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 113 of file btTetrahedronShape.cpp.

References m_numVertices, and m_vertices.

int btBU_Simplex1to4::getIndex

(

int

i

)

const [virtual]

Definition at line 209 of file btTetrahedronShape.cpp.

virtual const char* btBU_Simplex1to4::getName

(

void

)

const [inline, virtual]

getName is for debugging

Definition at line 70 of file btTetrahedronShape.h.

int btBU_Simplex1to4::getNumEdges

(

)

const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 94 of file btTetrahedronShape.cpp.

References m_numVertices.

int btBU_Simplex1to4::getNumPlanes

(

)

const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 182 of file btTetrahedronShape.cpp.

References m_numVertices.

int btBU_Simplex1to4::getNumVertices

(

)

const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 89 of file btTetrahedronShape.cpp.

References m_numVertices.

void btBU_Simplex1to4::getPlane	(	btVector3 &	planeNormal,
		btVector3 &	planeSupport,
		int	i
	)		const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 204 of file btTetrahedronShape.cpp.

void btBU_Simplex1to4::getVertex	(	int	i,
		btVector3 &	vtx
	)		const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 177 of file btTetrahedronShape.cpp.

References i, and m_vertices.

bool btBU_Simplex1to4::isInside	(	const btVector3 &	pt,
		btScalar	tolerance
	)		const [virtual]

Implements btPolyhedralConvexShape.

Definition at line 214 of file btTetrahedronShape.cpp.

void btBU_Simplex1to4::reset

(

)

[inline]

Definition at line 41 of file btTetrahedronShape.h.

References m_numVertices.

---

Member Data Documentation

int btBU_Simplex1to4::m_numVertices [protected]

Definition at line 29 of file btTetrahedronShape.h.

Referenced by addVertex(), btTetrahedronShapeEx::btTetrahedronShapeEx(), getAabb(), getEdge(), getNumEdges(), getNumPlanes(), getNumVertices(), and reset().

btVector3 btBU_Simplex1to4::m_vertices[4] [protected]

Definition at line 30 of file btTetrahedronShape.h.

Referenced by addVertex(), getAabb(), getEdge(), getVertex(), and btTetrahedronShapeEx::setVertices().

---

The documentation for this class was generated from the following files:

• btTetrahedronShape.h
• btTetrahedronShape.cpp
