AUD_CallbackIIRFilterReader Class Reference

#include <AUD_CallbackIIRFilterReader.h>

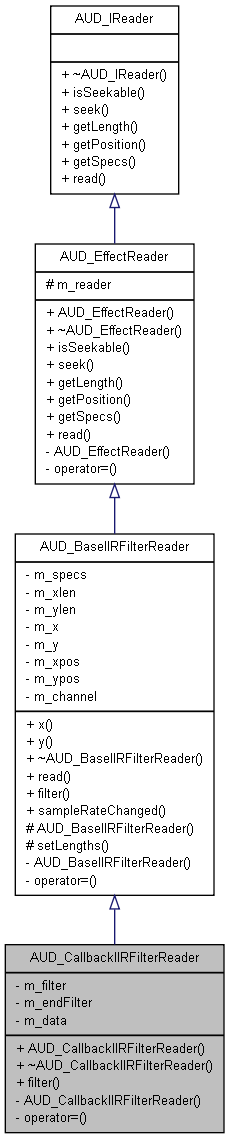

Inheritance diagram for AUD_CallbackIIRFilterReader:

List of all members.

Public Member Functions
	AUD_CallbackIIRFilterReader (AUD_Reference< AUD_IReader > reader, int in, int out, doFilterIIR doFilter, endFilterIIR endFilter=0, void *data=0)
virtual	~AUD_CallbackIIRFilterReader ()
virtual sample_t	filter ()

---

Detailed Description

This class provides an interface for infinite impulse response filters via a callback filter function.

Definition at line 45 of file AUD_CallbackIIRFilterReader.h.

---

Constructor & Destructor Documentation

AUD_CallbackIIRFilterReader::AUD_CallbackIIRFilterReader	(	AUD_Reference< AUD_IReader >	reader,
		int	in,
		int	out,
		doFilterIIR	doFilter,
		endFilterIIR	endFilter = 0,
		void *	data = 0
	)

Creates a new callback IIR filter reader.

Parameters:

reader	The reader to read from.
in	The count of past input samples needed.
out	The count of past output samples needed.
doFilter	The filter callback.
endFilter	The finishing callback.
data	Data pointer for the callbacks.

Definition at line 32 of file AUD_CallbackIIRFilterReader.cpp.

AUD_CallbackIIRFilterReader::~AUD_CallbackIIRFilterReader

(

)

[virtual]

Definition at line 42 of file AUD_CallbackIIRFilterReader.cpp.

---

Member Function Documentation

sample_t AUD_CallbackIIRFilterReader::filter

(

)

[virtual]

Runs the filtering function.

Returns:

The current output sample value.

Implements AUD_BaseIIRFilterReader.

Definition at line 48 of file AUD_CallbackIIRFilterReader.cpp.

---

The documentation for this class was generated from the following files:

• AUD_CallbackIIRFilterReader.h
• AUD_CallbackIIRFilterReader.cpp
