#include <btOverlappingPairCache.h>

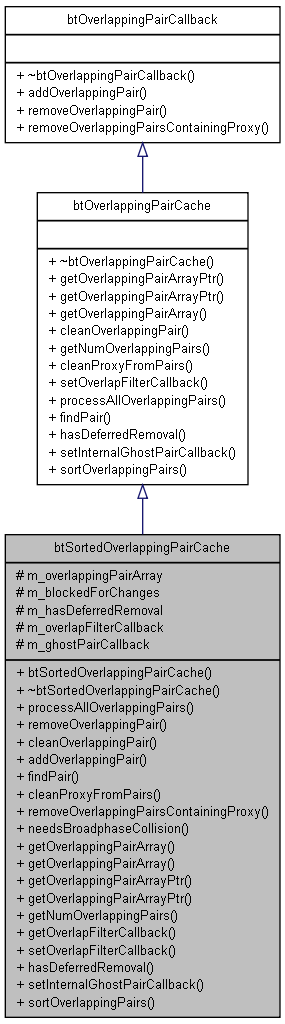

Inheritance diagram for btSortedOverlappingPairCache:

Public Member Functions
	btSortedOverlappingPairCache ()
virtual	~btSortedOverlappingPairCache ()
virtual void	processAllOverlappingPairs (btOverlapCallback , btDispatcher dispatcher)
void *	removeOverlappingPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1, btDispatcher *dispatcher)
void	cleanOverlappingPair (btBroadphasePair &pair, btDispatcher *dispatcher)
btBroadphasePair *	addOverlappingPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1)
btBroadphasePair *	findPair (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1)
void	cleanProxyFromPairs (btBroadphaseProxy proxy, btDispatcher dispatcher)
void	removeOverlappingPairsContainingProxy (btBroadphaseProxy proxy, btDispatcher dispatcher)
bool	needsBroadphaseCollision (btBroadphaseProxy proxy0, btBroadphaseProxy proxy1) const
btBroadphasePairArray &	getOverlappingPairArray ()
const btBroadphasePairArray &	getOverlappingPairArray () const
btBroadphasePair *	getOverlappingPairArrayPtr ()
const btBroadphasePair *	getOverlappingPairArrayPtr () const
int	getNumOverlappingPairs () const
btOverlapFilterCallback *	getOverlapFilterCallback ()
void	setOverlapFilterCallback (btOverlapFilterCallback *callback)
virtual bool	hasDeferredRemoval ()
virtual void	setInternalGhostPairCallback (btOverlappingPairCallback *ghostPairCallback)
virtual void	sortOverlappingPairs (btDispatcher *dispatcher)
Protected Attributes
btBroadphasePairArray	m_overlappingPairArray
bool	m_blockedForChanges
bool	m_hasDeferredRemoval
	by default, do the removal during the pair traversal
btOverlapFilterCallback *	m_overlapFilterCallback
btOverlappingPairCallback *	m_ghostPairCallback

Detailed Description

btSortedOverlappingPairCache maintains the objects with overlapping AABB Typically managed by the Broadphase, Axis3Sweep or btSimpleBroadphase

Definition at line 281 of file btOverlappingPairCache.h.

Constructor & Destructor Documentation

btSortedOverlappingPairCache::btSortedOverlappingPairCache ( )

Definition at line 541 of file btOverlappingPairCache.cpp.

References m_overlappingPairArray, and btAlignedObjectArray< T >::reserve().

btSortedOverlappingPairCache::~btSortedOverlappingPairCache ( ) [virtual]

Definition at line 551 of file btOverlappingPairCache.cpp.

Member Function Documentation

btBroadphasePair * btSortedOverlappingPairCache::addOverlappingPair	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1
	)		`[virtual]`

Implements btOverlappingPairCallback.

Definition at line 462 of file btOverlappingPairCache.cpp.

References btOverlappingPairCallback::addOverlappingPair(), btAssert, btAlignedObjectArray< T >::expandNonInitializing(), gAddedPairs, gOverlappingPairs, m_ghostPairCallback, m_overlappingPairArray, and needsBroadphaseCollision().

void btSortedOverlappingPairCache::cleanOverlappingPair	(	btBroadphasePair &	pair,
		btDispatcher *	dispatcher
	)		`[virtual]`

Implements btOverlappingPairCache.

Definition at line 555 of file btOverlappingPairCache.cpp.

References btDispatcher::freeCollisionAlgorithm(), and gRemovePairs.

Referenced by processAllOverlappingPairs(), and removeOverlappingPair().

void btSortedOverlappingPairCache::cleanProxyFromPairs	(	btBroadphaseProxy *	proxy,
		btDispatcher *	dispatcher
	)		`[virtual]`

Implements btOverlappingPairCache.

Definition at line 569 of file btOverlappingPairCache.cpp.

References processAllOverlappingPairs().

btBroadphasePair * btSortedOverlappingPairCache::findPair	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1
	)		`[virtual]`

this findPair becomes really slow. Either sort the list to speedup the query, or use a different solution. It is mainly used for Removing overlapping pairs. Removal could be delayed. we could keep a linked list in each proxy, and store pair in one of the proxies (with lowest memory address) Also we can use a 2D bitmap, which can be useful for a future GPU implementation

Implements btOverlappingPairCache.

Definition at line 486 of file btOverlappingPairCache.cpp.

References btAlignedObjectArray< T >::findLinearSearch(), m_overlappingPairArray, needsBroadphaseCollision(), and btAlignedObjectArray< T >::size().

Referenced by removeOverlappingPair().

int btSortedOverlappingPairCache::getNumOverlappingPairs ( ) const [inline, virtual]

Implements btOverlappingPairCache.

Definition at line 353 of file btOverlappingPairCache.h.

References m_overlappingPairArray, and btAlignedObjectArray< T >::size().

btOverlapFilterCallback* btSortedOverlappingPairCache::getOverlapFilterCallback ( ) [inline]

Definition at line 358 of file btOverlappingPairCache.h.

References m_overlapFilterCallback.

btBroadphasePairArray& btSortedOverlappingPairCache::getOverlappingPairArray ( ) [inline, virtual]

Implements btOverlappingPairCache.

Definition at line 330 of file btOverlappingPairCache.h.

References m_overlappingPairArray.

const btBroadphasePairArray& btSortedOverlappingPairCache::getOverlappingPairArray ( ) const [inline]

Definition at line 335 of file btOverlappingPairCache.h.

References m_overlappingPairArray.

btBroadphasePair* btSortedOverlappingPairCache::getOverlappingPairArrayPtr ( ) [inline, virtual]

Implements btOverlappingPairCache.

Definition at line 343 of file btOverlappingPairCache.h.

References m_overlappingPairArray.

const btBroadphasePair* btSortedOverlappingPairCache::getOverlappingPairArrayPtr ( ) const [inline, virtual]

Implements btOverlappingPairCache.

Definition at line 348 of file btOverlappingPairCache.h.

References m_overlappingPairArray.

virtual bool btSortedOverlappingPairCache::hasDeferredRemoval ( ) [inline, virtual]

Implements btOverlappingPairCache.

Definition at line 368 of file btOverlappingPairCache.h.

References m_hasDeferredRemoval.

Referenced by removeOverlappingPair().

bool btSortedOverlappingPairCache::needsBroadphaseCollision	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1
	)		const `[inline]`

Definition at line 319 of file btOverlappingPairCache.h.

References m_overlapFilterCallback, and btOverlapFilterCallback::needBroadphaseCollision().

Referenced by addOverlappingPair(), and findPair().

void btSortedOverlappingPairCache::processAllOverlappingPairs	(	btOverlapCallback *	callback,
		btDispatcher *	dispatcher
	)		`[virtual]`

Implements btOverlappingPairCache.

Definition at line 514 of file btOverlappingPairCache.cpp.

References cleanOverlappingPair(), gOverlappingPairs, i, m_overlappingPairArray, btAlignedObjectArray< T >::pop_back(), btOverlapCallback::processOverlap(), btAlignedObjectArray< T >::size(), and btAlignedObjectArray< T >::swap().

Referenced by cleanProxyFromPairs(), and removeOverlappingPairsContainingProxy().

void * btSortedOverlappingPairCache::removeOverlappingPair	(	btBroadphaseProxy *	proxy0,
		btBroadphaseProxy *	proxy1,
		btDispatcher *	dispatcher
	)		`[virtual]`
