#include <AUD_I3DHandle.h>

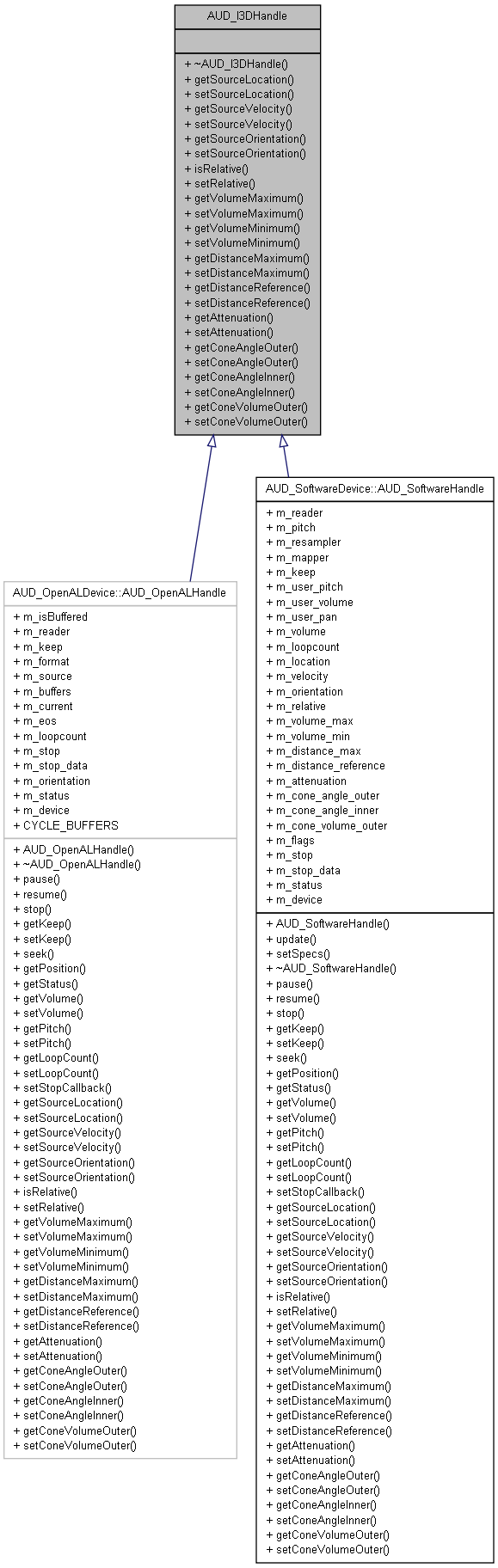

Inheritance diagram for AUD_I3DHandle:

Public Member Functions
virtual	~AUD_I3DHandle ()
virtual AUD_Vector3	getSourceLocation ()=0
virtual bool	setSourceLocation (const AUD_Vector3 &location)=0
virtual AUD_Vector3	getSourceVelocity ()=0
virtual bool	setSourceVelocity (const AUD_Vector3 &velocity)=0
virtual AUD_Quaternion	getSourceOrientation ()=0
virtual bool	setSourceOrientation (const AUD_Quaternion &orientation)=0
virtual bool	isRelative ()=0
virtual bool	setRelative (bool relative)=0
virtual float	getVolumeMaximum ()=0
virtual bool	setVolumeMaximum (float volume)=0
virtual float	getVolumeMinimum ()=0
virtual bool	setVolumeMinimum (float volume)=0
virtual float	getDistanceMaximum ()=0
virtual bool	setDistanceMaximum (float distance)=0
virtual float	getDistanceReference ()=0
virtual bool	setDistanceReference (float distance)=0
virtual float	getAttenuation ()=0
virtual bool	setAttenuation (float factor)=0
virtual float	getConeAngleOuter ()=0
virtual bool	setConeAngleOuter (float angle)=0
virtual float	getConeAngleInner ()=0
virtual bool	setConeAngleInner (float angle)=0
virtual float	getConeVolumeOuter ()=0
virtual bool	setConeVolumeOuter (float volume)=0

Detailed Description

This class represents a playback handle for 3D sources.

Definition at line 39 of file AUD_I3DHandle.h.

Constructor & Destructor Documentation

virtual AUD_I3DHandle::~AUD_I3DHandle ( ) [inline, virtual]

Destroys the handle.

Definition at line 45 of file AUD_I3DHandle.h.

Member Function Documentation

virtual float AUD_I3DHandle::getAttenuation ( ) [pure virtual]

Retrieves the attenuation of a source.

Returns:: The attenuation.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_attenuation().

virtual float AUD_I3DHandle::getConeAngleInner ( ) [pure virtual]

Retrieves the inner angle of the cone of a source.

Returns:: The inner angle of the cone.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_cone_angle_inner().

virtual float AUD_I3DHandle::getConeAngleOuter ( ) [pure virtual]

Retrieves the outer angle of the cone of a source.

Returns:: The outer angle of the cone.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_cone_angle_outer().

virtual float AUD_I3DHandle::getConeVolumeOuter ( ) [pure virtual]

Retrieves the outer volume of the cone of a source. The volume between inner and outer angle is interpolated between inner volume and this value.

Returns:: The outer volume of the cone.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_cone_volume_outer().

virtual float AUD_I3DHandle::getDistanceMaximum ( ) [pure virtual]

Retrieves the maximum distance of a source. If a source is further away from the reader than this distance, the volume will automatically be set to 0.

Returns:: The maximum distance.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_distance_maximum().

virtual float AUD_I3DHandle::getDistanceReference ( ) [pure virtual]

Retrieves the reference distance of a source.

Returns:: The reference distance.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_distance_reference().

virtual AUD_Vector3 AUD_I3DHandle::getSourceLocation ( ) [pure virtual]

Retrieves the location of a source.

Returns:: The location.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_location().

virtual AUD_Quaternion AUD_I3DHandle::getSourceOrientation ( ) [pure virtual]

Retrieves the orientation of a source.

Returns:: The orientation as quaternion.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_orientation().

virtual AUD_Vector3 AUD_I3DHandle::getSourceVelocity ( ) [pure virtual]

Retrieves the velocity of a source.

Returns:: The velocity.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_velocity().

virtual float AUD_I3DHandle::getVolumeMaximum ( ) [pure virtual]

Retrieves the maximum volume of a source.

Returns:: The maximum volume.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_volume_maximum().

virtual float AUD_I3DHandle::getVolumeMinimum ( ) [pure virtual]

Retrieves the minimum volume of a source.

Returns:: The minimum volume.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_volume_minimum().

virtual bool AUD_I3DHandle::isRelative ( ) [pure virtual]

Checks whether the source location, velocity and orientation are relative to the listener.

Returns:: Whether the source is relative.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_get_relative().

virtual bool AUD_I3DHandle::setAttenuation ( float factor ) [pure virtual]

Sets the attenuation of a source. This value is used for distance calculation.

Parameters:

factor The new attenuation.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_attenuation().

virtual bool AUD_I3DHandle::setConeAngleInner ( float angle ) [pure virtual]

Sets the inner angle of the cone of a source.

Parameters:

angle The new inner angle of the cone.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_cone_angle_inner().

virtual bool AUD_I3DHandle::setConeAngleOuter ( float angle ) [pure virtual]

Sets the outer angle of the cone of a source.

Parameters:

angle The new outer angle of the cone.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_cone_angle_outer().

virtual bool AUD_I3DHandle::setConeVolumeOuter ( float volume ) [pure virtual]

Sets the outer volume of the cone of a source. The volume between inner and outer angle is interpolated between inner volume and this value.

Parameters:

volume The new outer volume of the cone.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_cone_volume_outer().

virtual bool AUD_I3DHandle::setDistanceMaximum ( float distance ) [pure virtual]

Sets the maximum distance of a source. If a source is further away from the reader than this distance, the volume will automatically be set to 0.

Parameters:

distance The new maximum distance.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_distance_maximum().

virtual bool AUD_I3DHandle::setDistanceReference ( float distance ) [pure virtual]

Sets the reference distance of a source.

Parameters:

distance The new reference distance.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_distance_reference().

virtual bool AUD_I3DHandle::setRelative ( bool relative ) [pure virtual]

Sets whether the source location, velocity and orientation are relative to the listener.

Parameters:

relative Whether the source is relative.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_relative().

virtual bool AUD_I3DHandle::setSourceLocation ( const AUD_Vector3 & location ) [pure virtual]

Sets the location of a source.

Parameters:

location The new location.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_location().

virtual bool AUD_I3DHandle::setSourceOrientation ( const AUD_Quaternion & orientation ) [pure virtual]

Sets the orientation of a source.

Parameters:

orientation The new orientation as quaternion.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_orientation().

virtual bool AUD_I3DHandle::setSourceVelocity ( const AUD_Vector3 & velocity ) [pure virtual]

Sets the velocity of a source.

Parameters:

velocity The new velocity.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_velocity().

virtual bool AUD_I3DHandle::setVolumeMaximum ( float volume ) [pure virtual]

Sets the maximum volume of a source.

Parameters:

volume The new maximum volume.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_volume_maximum().

virtual bool AUD_I3DHandle::setVolumeMinimum ( float volume ) [pure virtual]

Sets the minimum volume of a source.

Parameters:

volume The new minimum volume.

Returns:: Whether the action succeeded.

Implemented in AUD_SoftwareDevice::AUD_SoftwareHandle.

Referenced by Handle_set_volume_minimum().

The documentation for this class was generated from the following file:

AUD_I3DHandle.h
